Airedale boosts BREEAM points with DeltaChill R32


05 August 2020

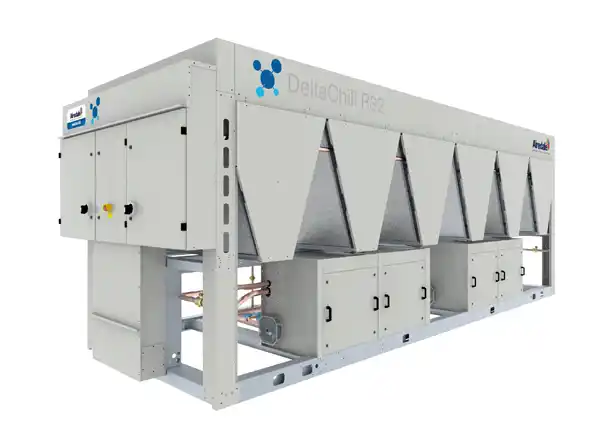

DeltaChill R32 from Airedale International

Airedale International’s DeltaChill R32 air cooled chillers are now eligible for 3 BREEAM credits. The manufacturer says this highlights the range’s energy efficient qualities and will help contractors achieve environmental targets on new build projects.

BREEAM aims to reduce the life cycle impact of new buildings on the environment by awarding credits for products used within the building’s design which reduce the building’s carbon footprint. DeltaChill R32 is now eligible for 2 credits due to the direct effect life cycle CO2 equivalent emissions (DELC) of  ≤ 100 kgCO2e/kW and 1 credit due to all systems being hermetically sealed, with a tested leakage rate of less than 3g/year.

Airedale uses its own annual refrigerant leakage rate, which specifically relates to Airedale products, as opposed using to the generic leakage value stated in BREEAM guidelines for DELC calculations. All units undergo a leak test using a device which would detect any escaping gas on a brazed joint that would equate to more than 1g / year. Using these results, Airedale is able to calculate a more accurate estimate for  the annual leakage rate. This calculated value was significantly lower than the default value provided by BREEAM and means the DELC calculated value for R32 DeltaChill units is under 100kgCO2e/kW , thus making it eligible for 2 credits, which is added to the 1 credit given for systems being hermetically sealed.

Content continues after advertisements

Darren Farrar, Marketing Manager at Airedale, said: “This revised calculation comes as great news. We invest heavily into research and development and are keen to reduce the environmental impact of our products. Working with refrigerants that offer a lower GWP and reducing leakage is important and getting external recognition helps us to share this message, with conviction, to a much wider audience.”

DeltaChill R32 was launched last year as part of the Azure R32 range. It is an ultra energy-efficient air-cooled chiller available with up to 1100kW of cooling. Airedale says it combines quiet, cost effective scroll compressors and the latest fan technology applied in a modular V-frame coil design, with microchannel heat exchangers that lift efficiency even higher, whilst still minimising space claim.

With 282 models, unit selection can be optimised for efficiency or footprint. The free-cool functionality offers significantly reduced running costs and carbon footprint. During mechanical cooling, the DeltaChill has good part load efficiencies, ensuring no power is wasted.
