Tools Talk: Bulldog vacuum pump – are you R32 ready?

9abd19fd-a93e-42de-adc0-52680502edc1

27 February 2018
|

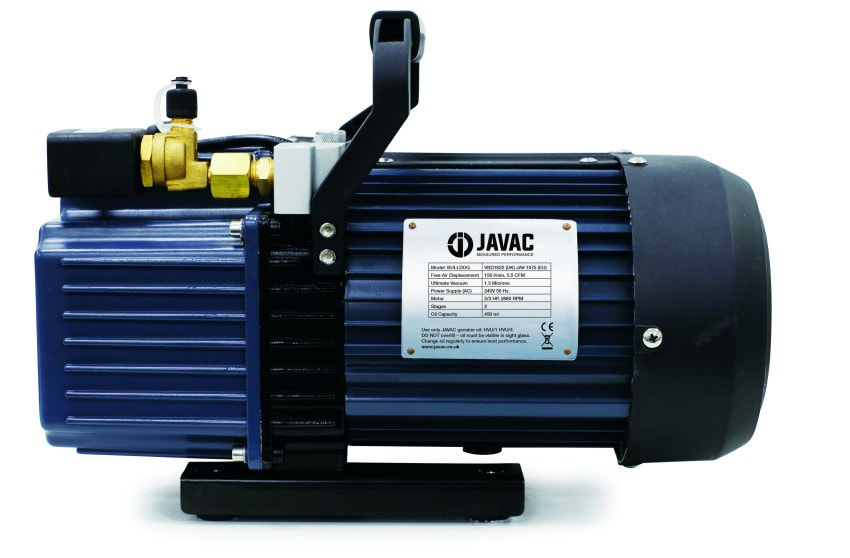

JAVAC offers some of the most reliable vacuum pumps available and the R32 ready Bulldog is the latest to be added to the range.

With the changeover to the mildly flammable R32 refrigerant, engineers and manufacturers understand the importance of having tools that are designed specifically to deal with the mildly flammable gas.
Technical specification
  • Voltage all units: 220/240V / 50Hz
  • Vacuum all units: 1.5 micron free air displacement 160 L/min
  • Intake Fittings all units: 1/4 SAE 3/8 SAE 1/2 ACME
  • Warranty all units: 12 months

Features and benefits
  • Sparkproof design
  • Two stage oil sealed vacuum pump
  • Isolation solenoid valve
  • Ultimate vacuum of 1.5 micron & free air displacement 160 L/min
  • Dual-oil demister to prevent mist & smoke
  • Fitted with a tri-connector suitable for 1/4” SAE, 3/8” SAE & 1/2” ACME
With years of engineering and servicing experience, JAVAC can offer advice, guidance and recommendations for products that are R32 ready.

Critically, for end users who insist on sparkproof equipment for R32 installations, the Bulldog is the perfect pump for the job.


Designed specifically for systems where A2L/R32 gases are in use, the Bulldog has a sealed, sparkproof switch – critical when dealing with the mildly flammable refrigerant.

A built-in solenoid Isolation valve prevents loss of vacuum in the event of power failure and with high vacuum as low as 1.5 microns, the Bulldog is packed with engineer-focused features.

Durable, lightweight and containing a dual-oil demister and spark proof switching, this two stage oil sealed vacuum pump is a must-have for any engineer’s van.

​The Bulldog is aiming to become the engineers’ vacuum pump of choice, with a multitude of R32 ready features and quality as standard.


Stay up to date with the latest innovations from JAVAC at www.javac.co.uk
