Interactive Components provide a cost-saving solution with De Pala

a761f2cc-9990-4f12-9116-88101cae2b35

25 January 2021
|
Interactive Components, a UK based agent and distributor for De Pala have designed a new motorised valve to reduce capital costs for a recent project.

Interactive Components, a UK based agent and distributor for De Pala have designed a new motorised valve to reduce capital costs for a recent project.

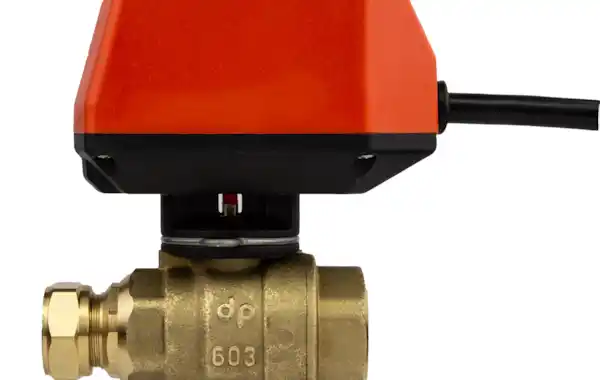

The De Pala 3-way 633BED Diverting Zone Valve with 2x15mm compression and 1x1/2” BSP female port has a maximum working pressure of 16.0 bar and a customer-specified maximum operating temperature of 85°C. It is fitted with a 24Vdc actuator with 12 second actuation time for 90 degrees of rotation and has successfully achieved Kiwa UK Regulation 4 Product and WRAS approval.

Both the valve and actuator are tailored to meet a customer-specific requirement of an integral off position between the diverting positions and will be used in conjunction with a standard De Pala 2-way 642BED on/off valve with 42mm compression fittings and standard 12-second actuator.

The original specification called for an actuated 2-way on/off 15mm compression fitting isolation valve to be used in conjunction with an actuated 3-way 15mm compression fittings diverting valve. By modifying a standard 3-way diverting valve and actuator head, De Pala has incorporated the isolation function of the 2-way 15mm valve.  The customer has saved a large proportion of the additional cost of the 2-way isolation valve in their system.

Dave Thompson, Managing Director, Interactive Components, said: “We pride ourselves on being able to offer tailor-made solutions for specific requests.  Our long-standing relationship with De Pala allows us to work closely in developing new products or concepts to introduce into the UK market.”

Content continues after advertisements

For information on the extensive range of De Pala valves and actuators for use in HVAC+R applications, please contact Interactive Components Limited:

[email protected]

+44 (0) 1296 425656
