Big Foot store support

0297f51f-6963-404f-9ef7-859786248264

Published: 18 July 2018


air conditioning support system

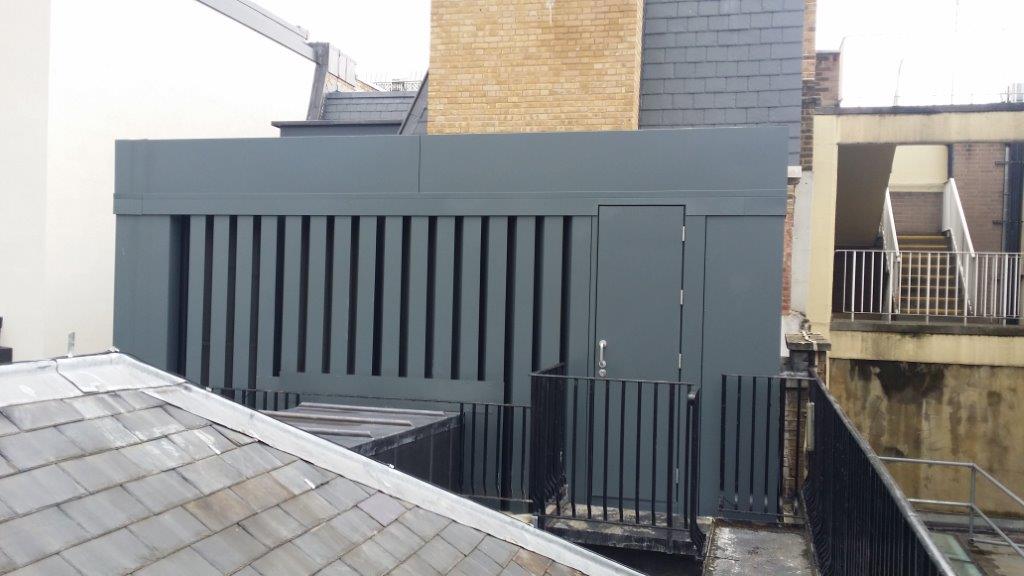

Big Foot Systems has designed and supplied a solution to support a large number of air conditioning units and a plant enclosure on a custom plant deck, as part of major works on a flagship London store for a high-end design brand in New Bond Street.

Big Foot was asked to provide a support system for the plant, which was to be sited over three large areas and would contain over 50 pieces of AC equipment and the plant enclosures.
The rooftop posed a number of challenges, as the site area identified for the plant was at differing levels and the existing structure had an unknown structural loading capacity. Working closely with the contractor, Big Foot Systems designed a solution that used a combination of its Heavy Duty system, Safe Access and Fix It Feet.

Ashley ten Wolde, UK Project Team Manager, said: “As this was a renovation of an old building, we were faced with a number of challenges not found in new builds where the roof has been designed to support a known loading capability. In addition to working with a tricky rooftop, it all had to be done to a tight timescale with the supports designed, fabricated and assembled on site before a crane was dismantled to allow room for further building. This all took place within a few months, including gaining design approval from contractors, M&E contractors, architects and installers, and the customer is very happy with the end result.”
