Ultra CO2 system packs BITZER power

32286f85-a9dc-4df3-a8af-56184fcf76a9

Published: 15 July 2021

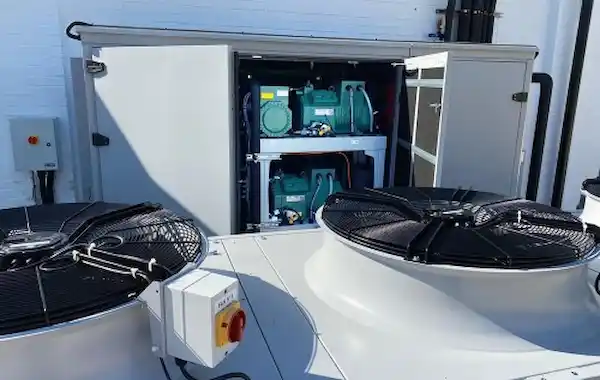

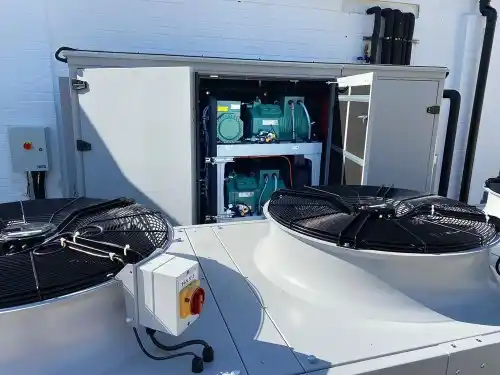

A pack installed on site with condenser in the foreground

Ultra Refrigeration has developed a high efficiency CO2 refrigeration pack with full heat recovery designed to deliver total comfort heating and air conditioning for convenience stores.

The company’s Integrated Power Pack (IPP), based on BITZER’s Ecoline CO2 reciprocating compressors, has been installed in four convenience stores in Lincolnshire as part of the retailer’s efficiency drive and carbon reduction programme.

The system captures heat from the high temperature discharge side of the pack by passing hot gas through a compact contraflow heat exchanger, transferring heat to a water-based heating system. Hydronic fan coils provide comfort heating and cooling for the store and adjoining warehouse facilities.
Hot water is also used to supply the over-door air curtain on the store’s main entrance, which operates constantly during opening hours, saving up to 14kW of electrical energy.

The IPP systems deployed deliver a total of up to 90kW of heating and 40kW of comfort cooling, although the design is scalable and can be configured for larger applications if required.

One of the Ultra Refrigeration packs being built

With efficiency boosted by significant energy savings on the heating side, the system has a pay-back on investment of around two years. In addition to energy savings and the much lower environmental impact, a further benefit of the system is that only low pressure pipework circulates within the store, avoiding any risks associated with in-store high pressure systems.

The stores served by the packs typically have around 22kW of high temperature (HT) refrigerated cases and 6kW of low temperature (LT) units. If the pack’s current cooling requirement is not sufficient to provide the minimum design load to heat the store, a forced load evaporator is brought into circuit to generate the heat required – achieving the required operating conditions more efficiently than would be the case with conventional air source heat pumps.

The packs installed to date are based on four BITZER Ecoline CO2 compressors, one dedicated to the LT side (Ecoline model 2HME-3K-40S), two handling the HT side (Ecoline model 4JTC-15-40P), and one covering comforting heating and cooling duties (Ecoline model 4HTC-20-40P) – with the option for load-sharing, depending on conditions.

Steve Shipp, Ultra Refrigeration managing director, said: “We take an engineering solutions approach to solving client’s problems. This involves thinking outside the box and looking afresh at opportunities to do things differently – and better.

“I learned a lot from my time as a design engineer at Tesco when problems had to be solved in real time, with the daily pressures of a retail business that never stops. This expertise is invaluable for clients, many of whom today don’t have their own refrigeration specialists in-house.

“Some CO2 refrigeration plants don’t fully harness the opportunity for heat recovery offered by the high discharge temperatures generated by CO2 systems. IPP is designed to recover as much of this energy as possible to save on whole-building energy costs.”

In addition to use in food stores, the pack lends itself to applications in industrial process projects requiring pre-heating of water or space heating. It has also been used in a low temperature climatic chamber for testing engines down to Siberian temperatures as low as -45°C, with reclaimed heat being used to warm the facility’s control centre and workshop.

Shipp added: “We have an excellent relationship with BITZER over many years. When the requirement for a proven CO2 system came up, the company’s trusted CO2 range was a natural choice.”
