Carrier chillers for hospital upgrade


23 February 2022

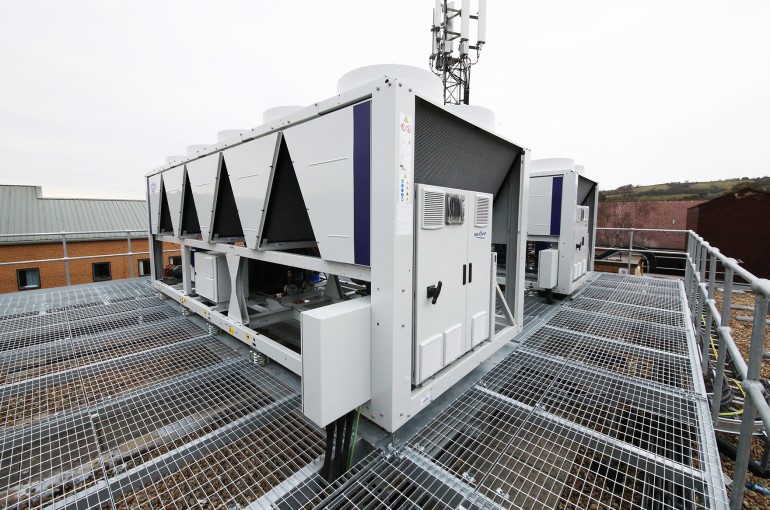

The Carrier chillers mounted on the new rooftop platform. Picture with permission of Intoheat Ltd

Two Carrier AquaSnap air-cooled chillers with Greenspeed Intelligence inverter speed control are providing high-performance, low noise cooling for wards and operating theatres at Royal United Hospitals Bath.

The 30RBP chillers are running on lower global warming potential (GWP) refrigerant R32 as part of a major upgrade of the hospital's air conditioning system.

Mounted on a new rooftop platform, the units replace two older split-system chillers by other manufacturers, significantly reducing servicing requirements and related costs due to their compact, fully packaged design.

Due to the combination of variable-speed electronically commutated condenser fans, high-performance Novation heat exchangers and compressors optimised for operation with R32, the chillers have a very high seasonal energy efficiency rating (SEER) of 5.18. The N+N system design ensures a second unit is available to take over full cooling duties in the unlikely event of a failure, providing the resilience required in this critical hospital application.

Content continues after advertisements

"Key requirements for the project were excellent efficiency, reliability, resilience, low sound levels and reduced environmental impact, and the Carrier chillers and system design deliver this," said James Allard, director of Brunel Integrated Services, consultant on the project.

"Carrier provided excellent support throughout the project. There was an issue with the hospital's electrical supply, which was limited and couldn't be upgraded in time for the start-up of the new chillers. Carrier responded quickly and programmed a load limit into the chiller control system to ensure they would not draw more than the maximum allowed, protecting the hospital's electrical system while ensuring cooling needs were fully met.”

The chillers went into service while work continued to upgrade the electrical supply. The chillers were also equipped with soft-start electronics, which provided a further safeguard to peak electrical load.

Additional options specified included enhanced acoustic attenuation to further reduce noise given the sensitive hospital application, and Enviroshield condenser coil protection, with a three-year warranty.

"Although the National Health Service was Carrier's direct customer on the project, Carrier provided excellent support to the installer, Intoheat, and worked closely with them to support the project to completion,” said Allard.

Based on the positive experience on the project, Brunel Integrated Services recommended a similar Carrier solution for a replacement project at another hospital located in the West of England.
