ClimaCIAT AHUs meet new NHS standards


15 December 2021

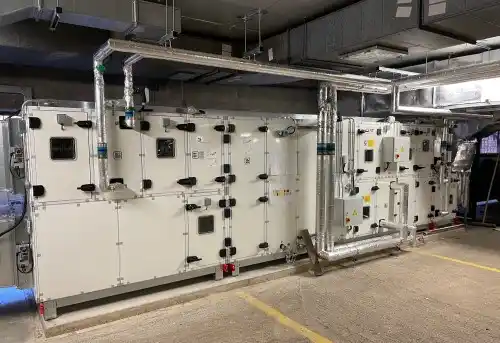

A fully compliant ClimaCIAT AHU installed at a hospital

CIAT's ClimaCIAT air handling units (AHUs) are fully compliant with the updated National Health Service (NHS) code of practice on ventilation in hospitals.

The new NHS specification, set out in Health Technical Memorandum 03-01 (HTM-03-01), was published earlier this year following input from industry and healthcare estate specialists. The code is designed to ensure ventilation equipment installed in hospitals meets the demanding health and safety, environmental, reliability and resilience requirements of high-quality healthcare applications.

"The ClimaCIAT range is an advanced solution with excellent performance and hygiene features as standard," said Lee Jenkins-Skinner, CIAT UK AHU and rooftop unit product manager. "However, the latest version of HTM-03-01 introduced some new requirements that necessitated development of additional features and technical adaptions to ensure full compliance across the range."

One of the most important additions is the requirement to provide covered access for staff while servicing AHUs located outdoors on a rooftop or on the ground. This ensures staff and equipment are protected from weather and the possibility of water ingress while access panels are removed during maintenance.

To address this, CIAT developed a weatherproof enclosure made of galvanised steel that runs alongside the unit, providing complete protection from the elements during servicing work, and preventing dirt and moisture from entering the unit to minimise contamination risks.

Content continues after advertisements

To reduce environmental impact, the guidance specifies that components, such as bypass dampers and related gears, must not be made of plastics. CIAT has developed alternative solutions made of steel that perform just as effectively without reliance on single-use plastics.

In a further design refinement, CIAT has developed a drain pan made of stainless steel, which is easier to clean and helps maintain hygiene. The design also helps minimise the overall height of the unit.

Effective management of condensate water is another focus of the guidance, in order to minimise the risk of legionella and other sources of contamination. To this end, drain pipework on ClimaCIAT units for hospitals is fitted with specialist glass (borosilicate) u-bends, enabling service staff to easily see any build-up of deposits by a quick visual inspection.
