Retail transformation uses Toshiba VRF


06 December 2022
Five Toshiba three-pipe VRF systems were installed by Coolair Services

A former Marks & Spencer building in Stockport has been transformed into a modern office, retail and leisure facility, equipped with high efficiency air conditioning based on a Toshiba SHRM-e heat recovery VRF system.

The project, by developer Glenbrook, involved remodelling the 64,000-square-foot building, including creation of a new full-height glazed atrium, an outdoor terrace and high-end office accommodation across two open-plan floors, with leisure and retail facilities in the basement and ground floor, all heated and cooled by Toshiba solutions.

Five separate three-pipe VRF systems were installed by Coolair Services, working for Medway Heating under main contractor City Build, with Toshiba VN heat recovery ventilation systems – installed by Ventilation Design Services – providing fresh air to the building.

“The remodelled building has completely open ceilings, giving a contemporary, spacious feeling," said David McSherry, head of sales, Toshiba Air Conditioning UK. "This means ductwork is exposed to retain the clean, industrial design. To accommodate this and prevent the risk of condensation forming on ducting, the fresh air system is engineered to operate with a maximum of 14°C air-off temperature."

Content continues after advertisements

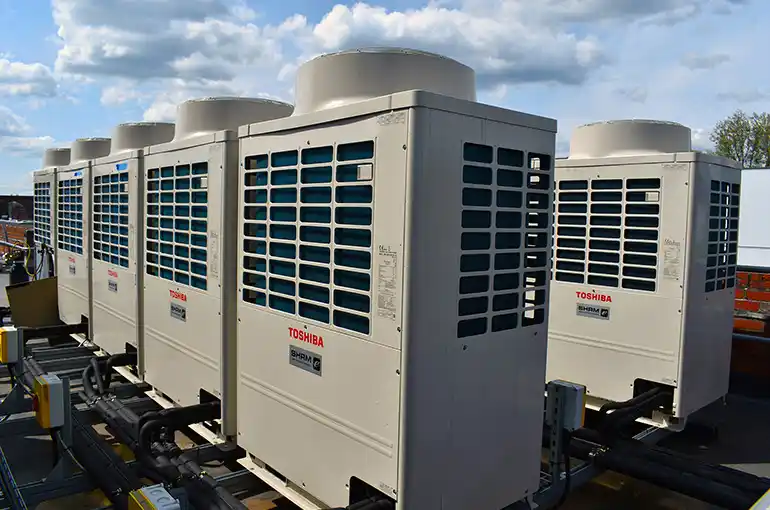

The Toshiba ceiling-suspended cassettes are painted in a bespoke black livery to match the contemporary lighting frames. Outdoor condensers are mounted on the rooftop, on a specially constructed support frame.

"The project was very much a collaborative effort," said Ben Marland, contracts manager, Coolair Services. "The TCUK team provided excellent technical support, producing the engineering calculations and system drawings, with timely updates when there were changes on site. Their design and support capabilities were an important factor in the decision to go with the Toshiba Air Conditioning solution, due to the project's design requirements."

Each VRF system is connected to a central touch screen controller, enabling the landlord to set comfort and performance parameters separately for each zoned area of the building.

The system achieves an ESEER (European Seasonal Energy Efficiency Ratio) of 8 and above in most capacities, an industry first, and an ESEER exceeding 7 for all capacities.

Toshiba SHRM-e
